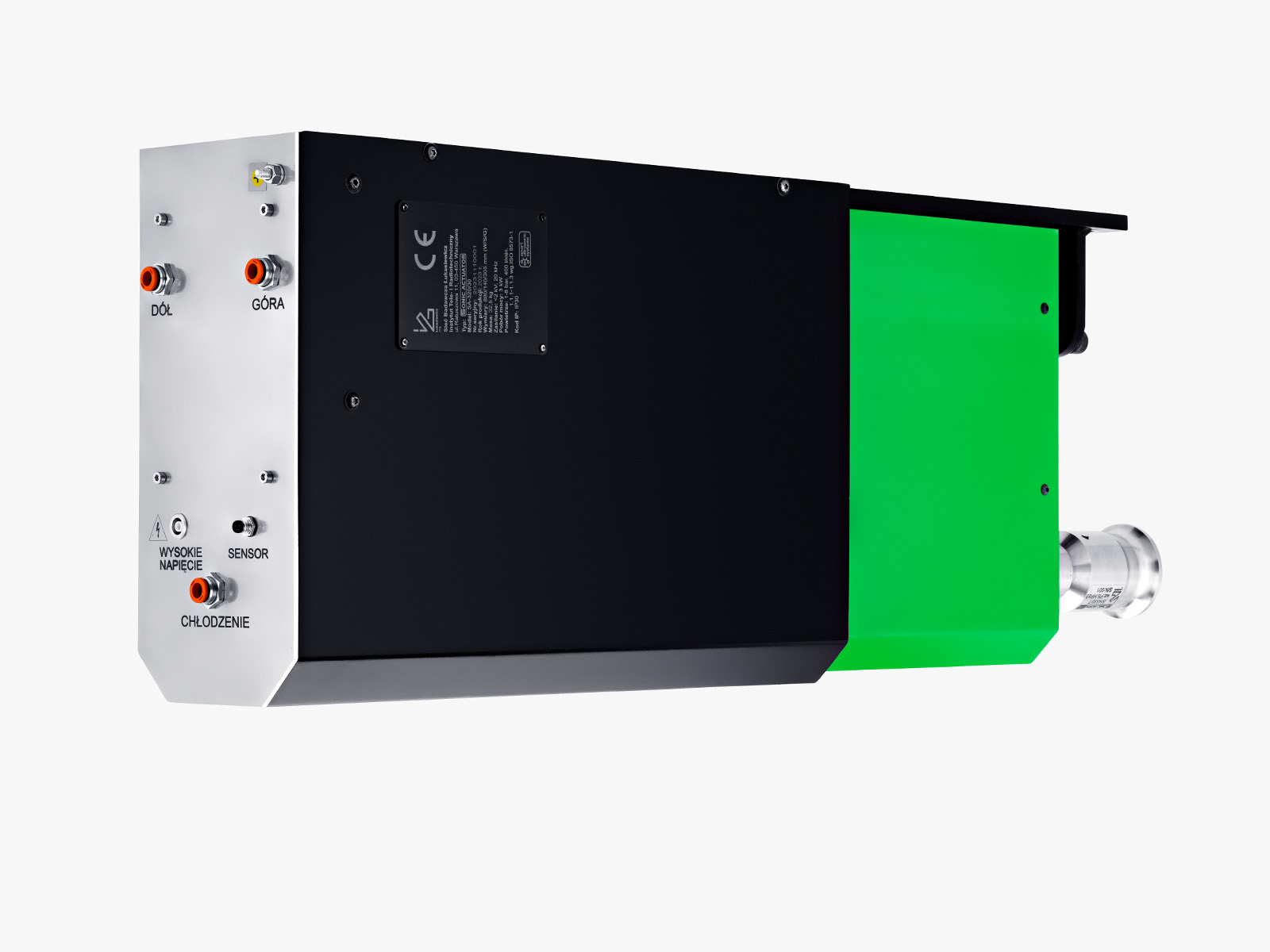

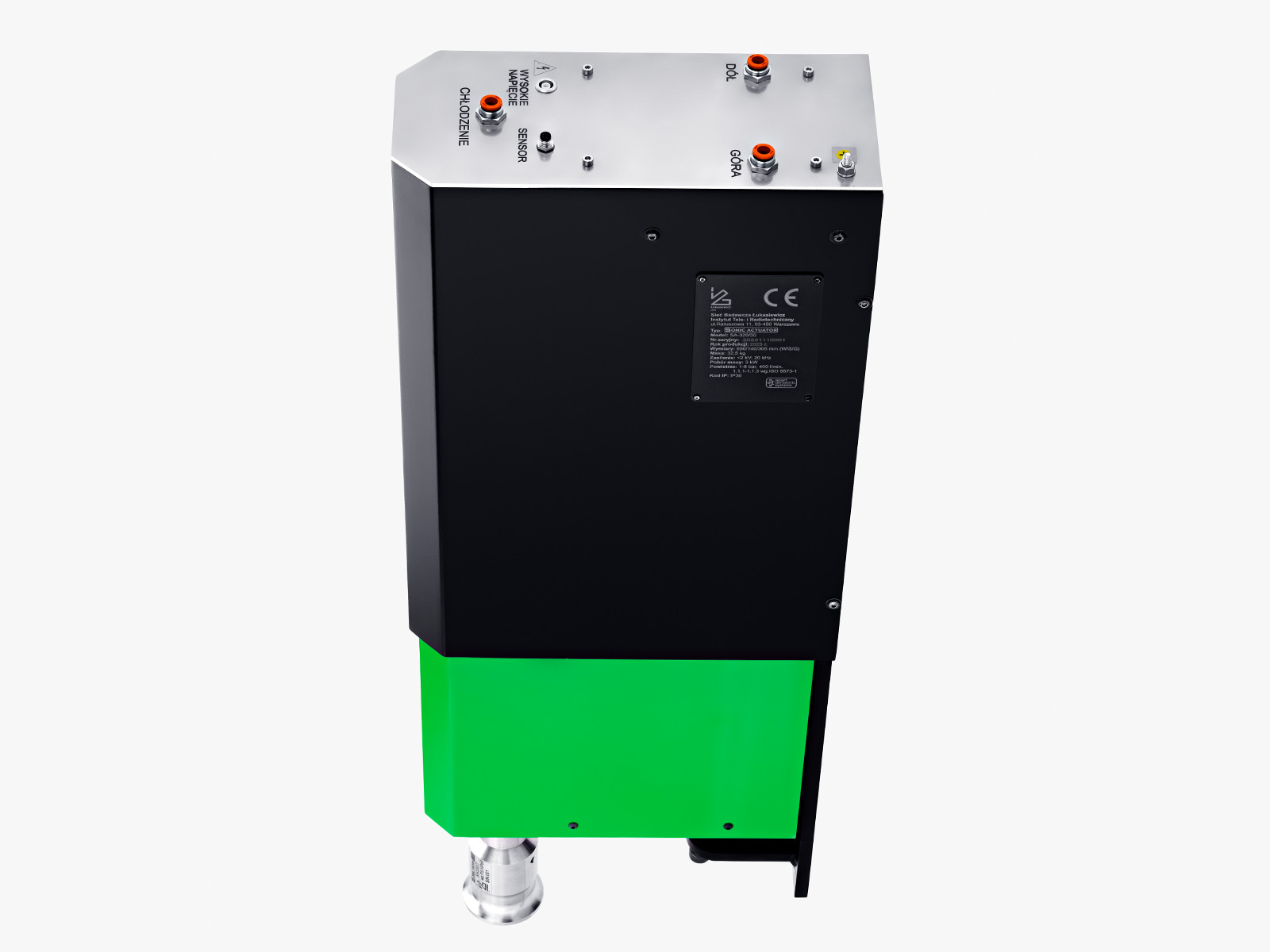

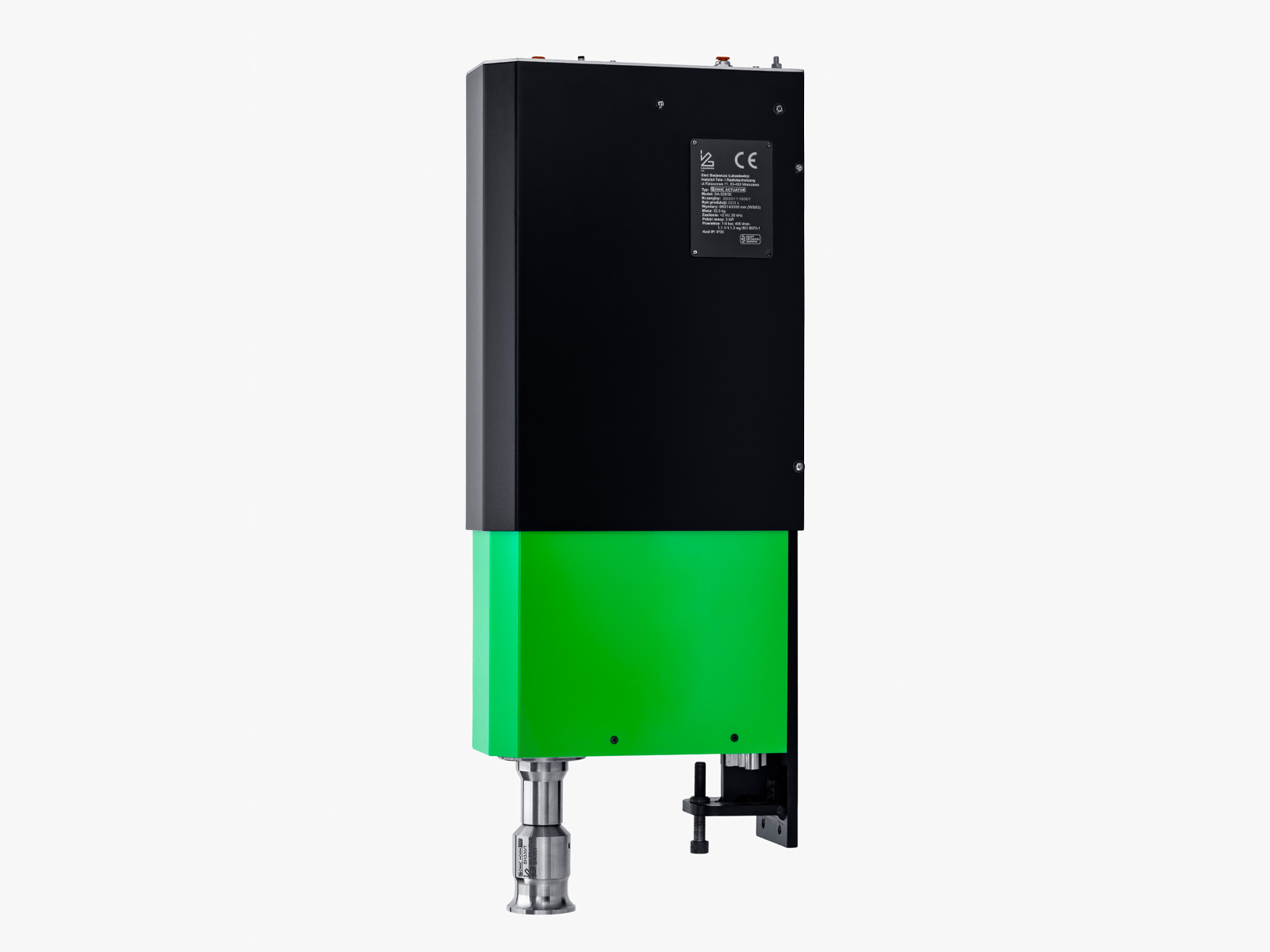

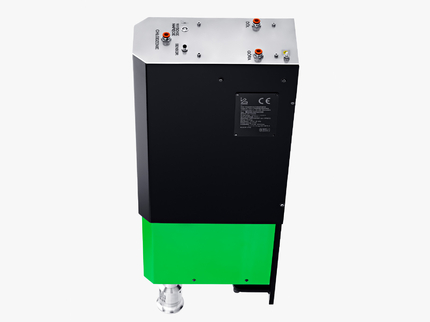

The SONIC ACTUATOR SA320 modular ultrasonic welder is an advanced device designed for bonding thermoplastic materials using ultrasonic technology. This process involves transferring mechanical energy at the appropriate frequency and amplitude, ensuring durable and aesthetically pleasing connections. The welder is characterized by its compact dimensions, which facilitate its integration into production lines, while still offering high power and precise control over welding parameters.
The SA320 model operates at a frequency of 20 kHz with a power output of 3000 W. It is equipped with an 80 mm diameter actuator with a maximum stroke of 160 mm, pneumatic connections, and transducer cooling. The device utilizes a titanium Sonic Converter SC320T transducer and a titanium Sonic Booster, ensuring high durability and operational efficiency.
The welder offers amplitude adjustment within the range of 10-100% and supports various operational modes, including energy mode, time mode, and continuous operation. It also features digital control of the sonotrode's pressing force, providing enhanced precision.
Additionally, the device includes an e-diagnostics function and real-time visualization of welding parameters. With the capability to define welding programs and access control (USER/SERVICE/ADMINISTRATOR), the welder offers complete flexibility and precise control over the process.
The SA320 meets the requirements of safety directives and standards, including 2006/42/EC, 2014/35/EU, 2014/30/EU, as well as standards PN-EN 60204-1:2010, PN-EN 61000-6-2:2008, and PN-EN 61000-6-4:2008, confirming its compliance with CE marking.
